STORM 12
Price: Contact us
STORM 12 is backordered and will ship as soon as it is back in stock.
Centrifugal fan made of anti-corrosion polypropylene
STORM 12 specifications (pdf)

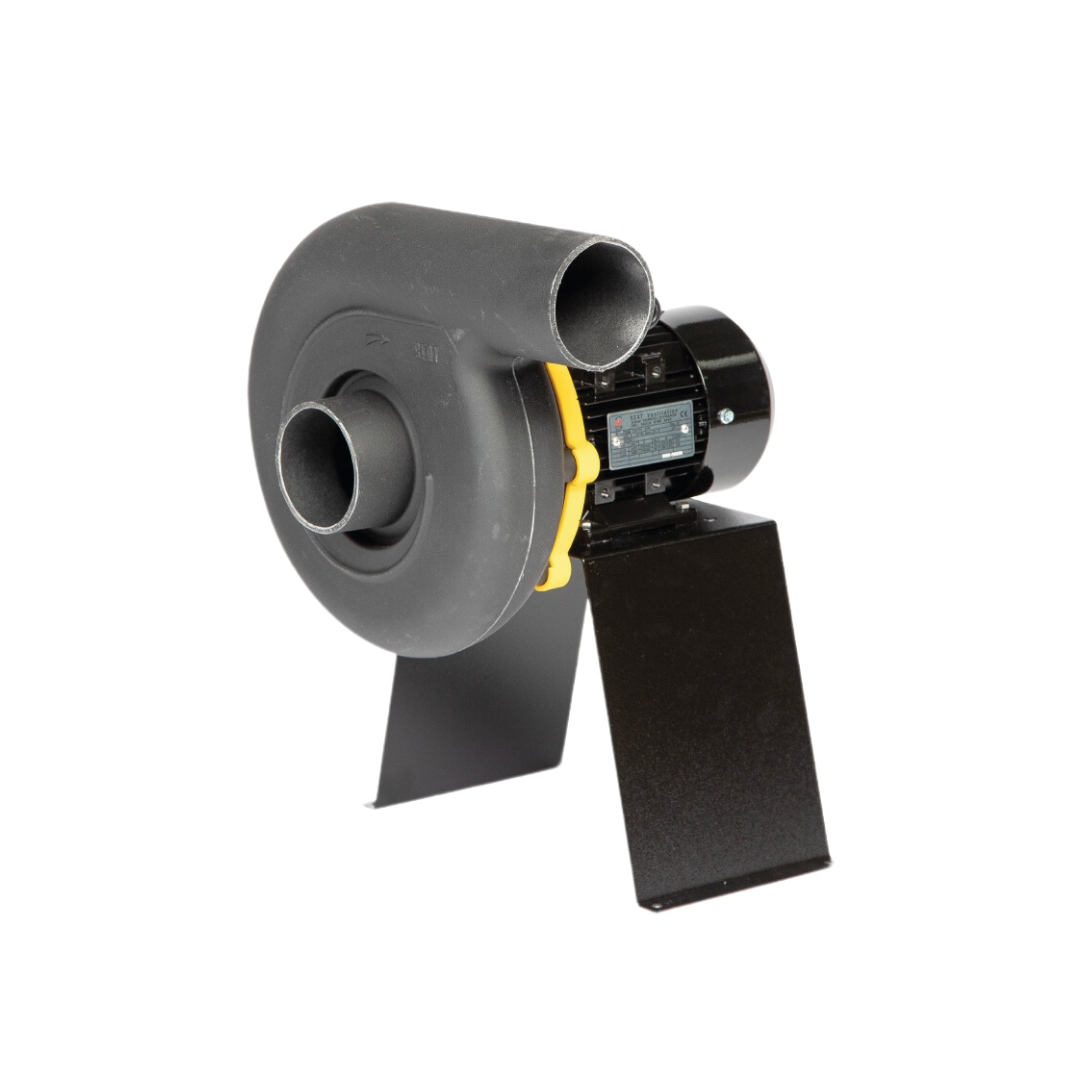

The STORM 12 from SEAT Ventilation is a polypropylene centrifugal fan suitable for extracting corrosive gases with a maximum air flow rate of 500 m³ /h and a diameter of 90mm on both the intake and exhaust sides. With direct drive, the impeller is attached directly to the motor shaft. It can be supplied with single-phase or three-phase motors, with a frequency converter to meet the requirements of your installations.
The STORM 12 is a high-pressure fan for applications such as storage cabinets, extraction arms, washing towers, sensors or filtration boxes.
Available in ATEX version only with three-phase motors.
In order to implement the necessary safety measures, each company must identify the areas of the workplace where explosive atmospheres may form.
This ATEX zoning makes it possible to ensure the suitability of all devices, whether electrical or not.
For your safety and that of your employees, SEAT Ventilation has created a range of fans specifically designed for the extraction of corrosive and toxic gases in laboratories, water treatment, swimming pools, chemical, pharmaceutical, oil industries, etc.
TECHNICAL CHARACTERISTICS
- Airflow: 50-500m³/h
- Static pressure: 200-1200Pa
- Aspiration: diameter 90mm
- Material: polypropylene
- Training: direct
- EC Motor: single-phase or three-phase
- Frequency: 50Hz or 60Hz with frequency converter
► Find the right product for your project even more easily, thanks to our online selection software:
ZEPHYR
CHOOSE POSITION (LG ONLY):
The STORM series from SEAT Ventilation is a range of chemical and corrosive resistant fans with higher static pressure.
Performances range from 50 to 3000PT (pa) static pressure and flow rates from 25 to 3000m³/h.
The STORM series is made of recyclable, UV-resistant polypropylene and can withstand temperatures up to 60°C.
Our STORM range is suitable for ventilating acid tanks, wastewater tanks, scrubbers, chemical storage cabinets, washing towers, and much more.
Made of corrosion-resistant polypropylene, these fans are ideal for handling corrosive and toxic vapors and gases. They are the safety solution for laboratories and most highly exposed industrial applications.
