STORM 14
Price: Contact us
STORM 14 is backordered and will ship as soon as it is back in stock.
Centrifugal fan made of anti-corrosion polypropylene
STORM 14 specifications (pdf)

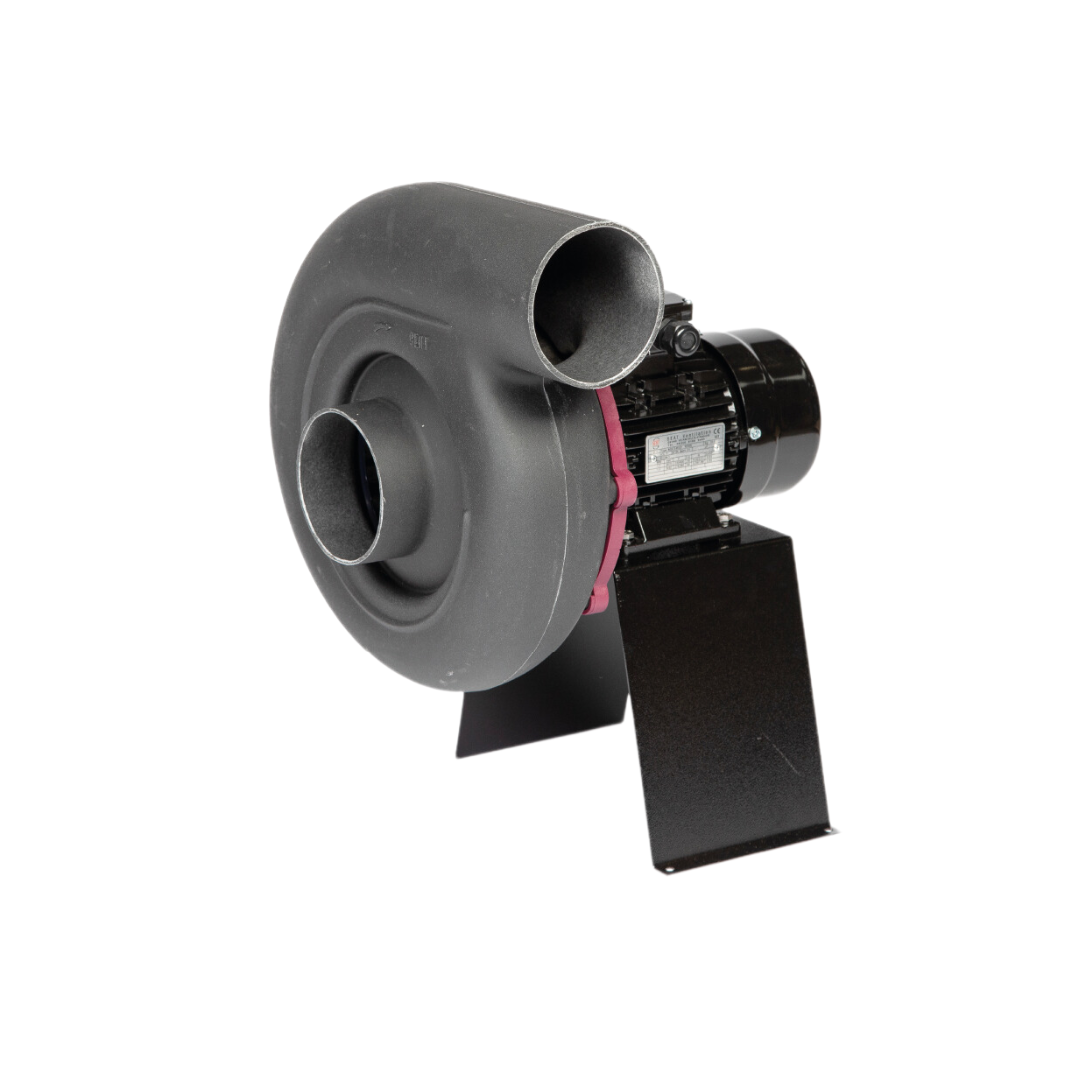

The STORM 14 from SEAT Ventilation is a polypropylene centrifugal fan suitable for the extraction of corrosive gases with a maximum air flow rate of 1000 m³ /h and a diameter of 125mm on the suction and discharge sides. In direct drive, the impeller is fixed directly to the motor shaft. It can be supplied with single-phase or three-phase motors with a frequency inverter to meet the requirements of your installations.
High pressure fan for applications such as storage cabinets, extraction arms, washing towers, sensors or filtration boxes.
Available in ATEX Zone 2 version, only with three-phase motors.
In order to implement appropriate safety measures, each company must identify areas of the workplace where explosive atmospheres may form.
This ATEX zoning makes it possible to ensure the suitability of all devices, whether electrical or not.
For your safety and that of your employees, SEAT Ventilation has created a range of fans specifically designed for the extraction of corrosive and toxic gases in laboratories, water treatment, swimming pools, chemical, pharmaceutical, oil industries, etc.
TECHNICAL CHARACTERISTICS
- Air flow: 400-1000 m³ /h
- Static pressure: 250-1700Pa
- Aspiration: diameter 125mm
- Material : polypropylene
- Training : direct
- EC Motor: single-phase or three-phase
- Frequency : 50Hz or 60Hz with frequency converter
► Find the right product for your project even more easily, thanks to our online selection software:
CHOOSE POSITION (LG ONLY):
