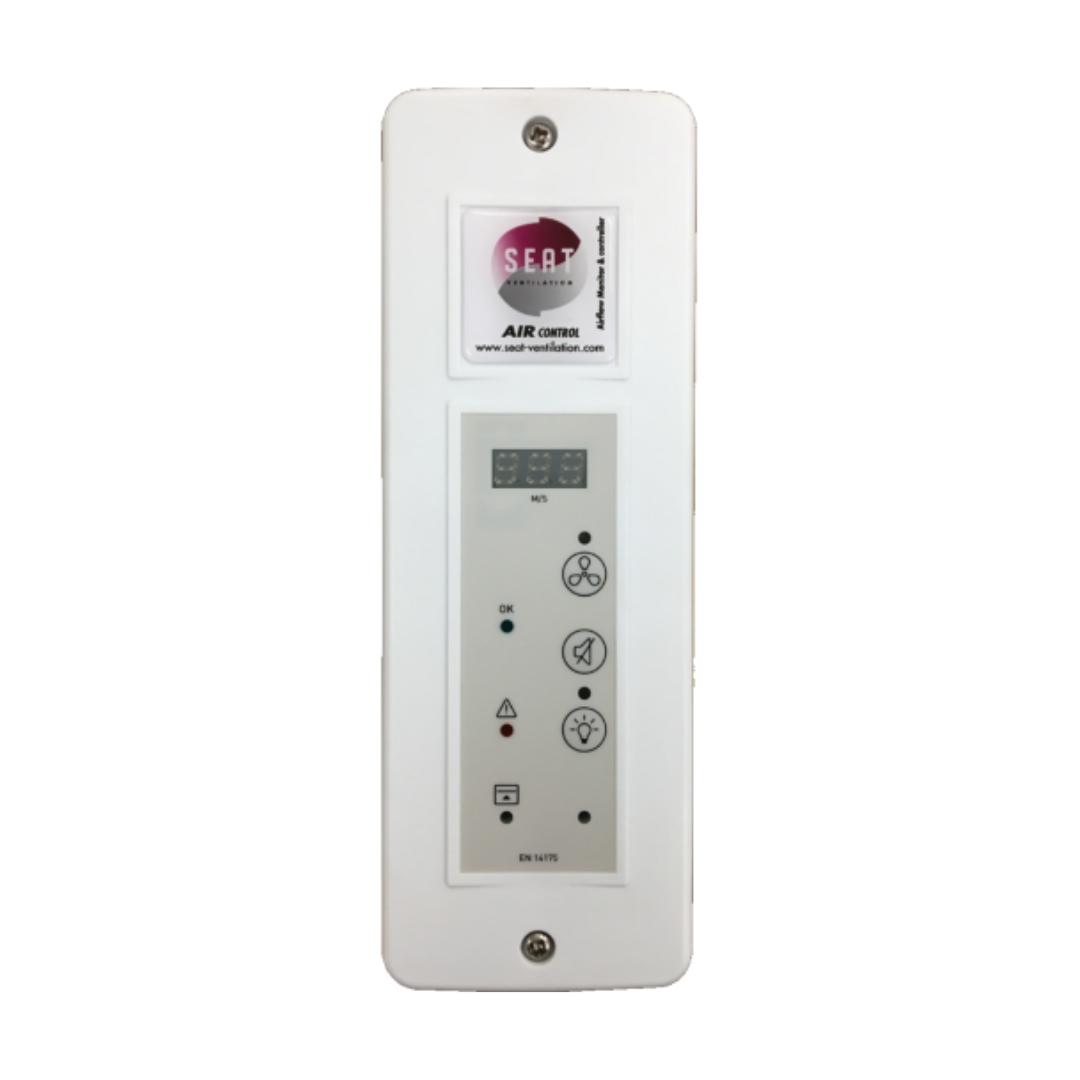

Contrôleurs pour sorbonne à vitesse d'air fixe type A

Controllers for fixed air speed fume hood type A

REF 819700

REF 819701 (with display)

Tutorial Controller Type A Quick Setting (EN)

Monitors air velocity of laboratory fume hoods.

Complies with current standards EN14-175 and RoHS.

HMI dimensions 210x75x34

FEATURES

  • On/Off ventilation
  • On/Off fume hood light
  • Warns the user by audible alarm of a speed lower than the setpoint
  • Warns the user of exceeding the working height of the ice cream

BENEFITS

  • Adjustable air speed setting from 0.3 to 0.7 m/s
  • No maintenance required

OPTIONS

  • Digital display of air speed in M/S or FPM
  • Battery that warns the user of a power outage by red light
  • Ambient temperature probe of the fume hood with trigger at 70°C
  • Audible alarm relay for low speed, working height exceeded or high temperature
  • Surface-mounted housing allowing fixing without embedding
  • Night watch

OPERATING PRINCIPLE

The TYPE A controller is used to control the ventilation of a fixed air flow fume cupboard.

It has three push buttons, allowing you to control ventilation, lighting, and stop the audible alarm.

Pressing the M/A ventilation button on the HMI allows you to control an extractor and/or a motorized shutter via the two VENT 1 and VENT 2 relays.

The probe measures the frontal velocity and the controller informs the user using several LEDs.

The green LED is on when the face speed is sufficient.

The red LED flashes when the face speed is insufficient.

The orange LED "sash overhang" lights up if the maximum window height is exceeded. This fault is triggered by a position switch.

The orange “auxiliary faults” LED lights up if the auxiliary input is activated.

The audible alarm is activated after a delay of 15 to 30 seconds when a fault remains present. After identifying the cause, the user can silence this alarm by pressing the buzzer stop button.

Pressing the light ON/OFF button controls the lighting via a 250V 16A relay.

The controller is powered by a supplied 230V/12V transformer.

The controller is factory preset to 0.5m/s and can be adjusted on site using an anemometer
