SEAT Ventilation  |  SKU: 810450

Enclosed pedestal

Access price

To access prices, please create an account / log in

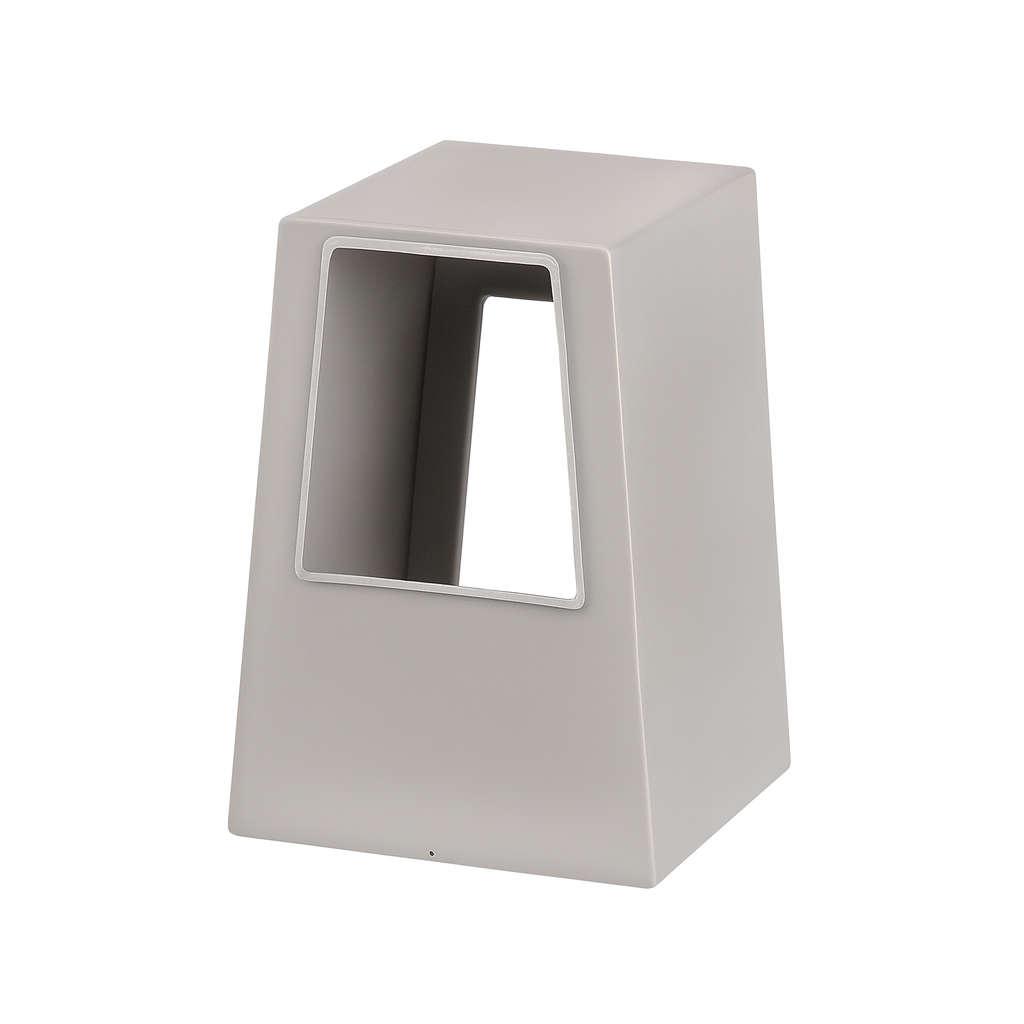

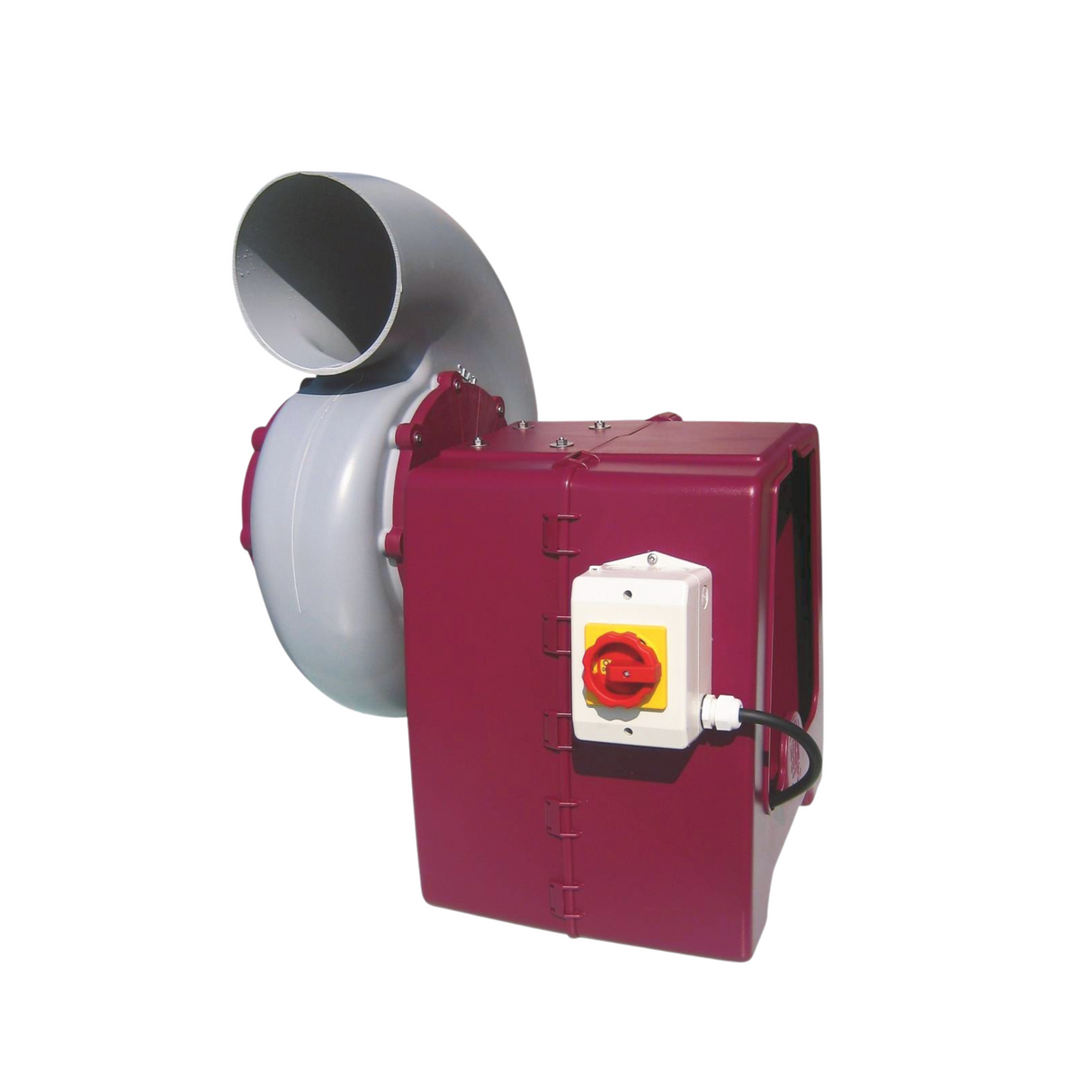

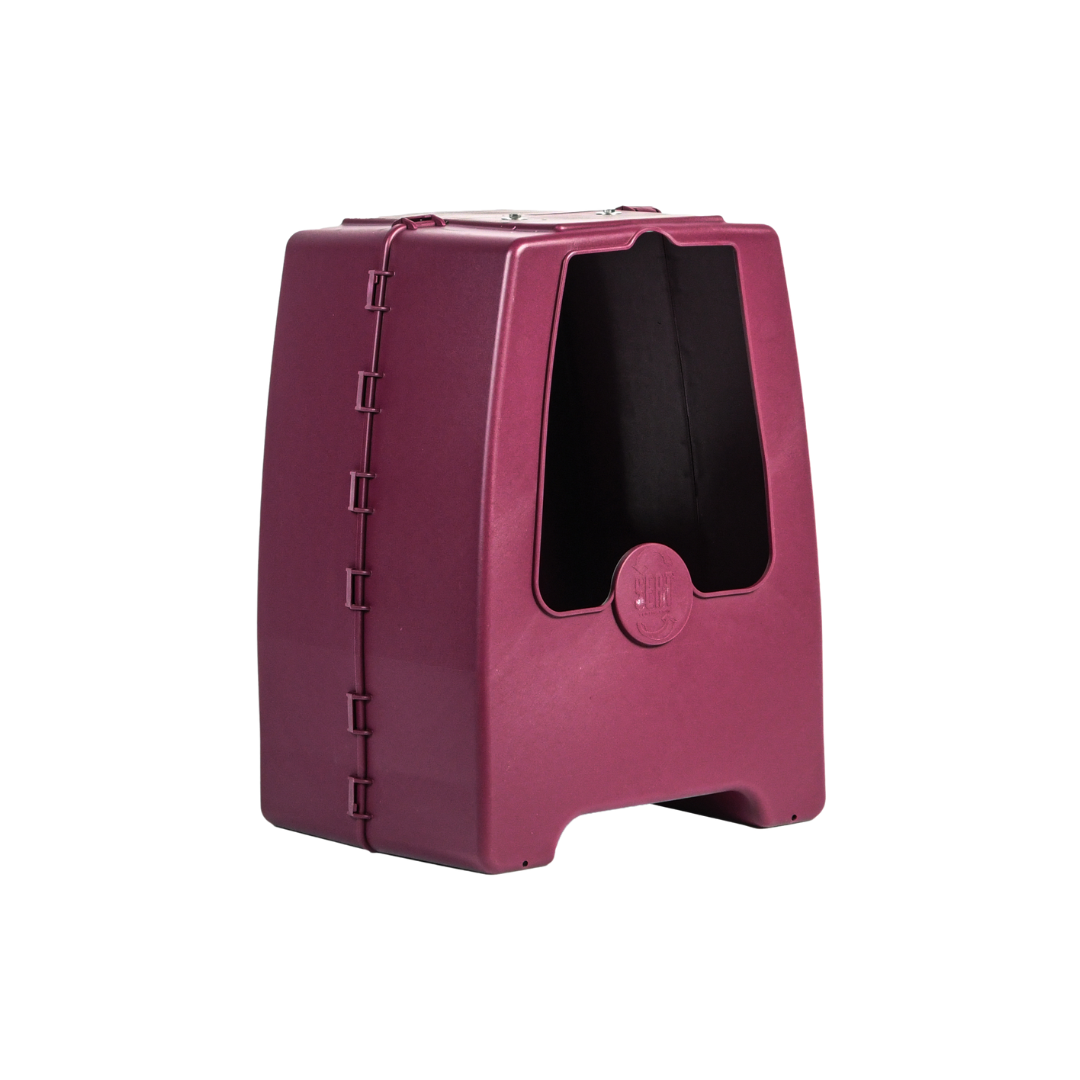

SEAT Ventilation High Protection Enclosed Pedestals

SEAT Ventilation offers a complete range of high protection enclosed pedestals specially designed for outdoor mounting of SEAT series fans, providing anti-corrosion protection and weather resistance.

High Protection Enclosed Pedestals - Reinforced Outdoor Supports

Our high protection enclosed pedestals provide a robust and durable solution for your outdoor ventilation installations, with optimal protection against harsh weather conditions.

SEAT 15-20

Reference: 810450 and 810450AT

  • Dimensions X x Z x Y: 450 x 450 x 425 mm
  • Drilling Z1 x Y1: 340 x 318 mm
  • Weight: 2.74 kg
  • Applications: Light outdoor ventilation, technical rooms, small spaces

Compatible with:

  • SEAT 15 (0.18 - 0.37 KW)
  • SEAT 20 0.18 KW
  • SEAT 25 (0.18 - 0.37 KW)
  • STORM 10 (0.06 - 0.09 KW)
  • STORM 12 (0.18 - 0.37 KW)
  • STORM 14 (1.1 KW)

SEAT 25-30

Reference: 810550 and 810550AT

  • Dimensions X x Z x Y: 550 x 550 x 425 mm
  • Drilling Z1 x Y1: 340 x 318 mm
  • Weight: 4.25 kg
  • Applications: Medium outdoor industrial ventilation, workshops, commercial installations

Compatible with:

  • SEAT 20 (0.75KW & 1.1 KW) ONLY FOR ATEX
  • SEAT 25 (1.5 - 3 KW)
  • SEAT 30 (0.55 - 1.1 KW)
  • STORM 16 (2.2 KW)

SEAT 35

Reference: 810700 and 810700AT

  • Dimensions X x Z x Y: 700 x 700 x 580 mm
  • Drilling Z1 x Y1: 500 x 490 mm
  • Weight: 15.50 kg
  • Applications: Heavy outdoor industrial ventilation, high performance extraction

Compatible with:

  • SEAT 35 (2.2 - 7.5 KW)
  • STORM 18 (7.5 KW)

Technical Characteristics

Reinforced anti-corrosion protection

  • Special corrosion-resistant treatment
  • High quality paint adapted to outdoor conditions
  • Durable finish for aggressive environments

Weather resistance

  • Waterproof design for outdoor use
  • Protection against rain, snow, UV and thermal variations
  • Materials resistant to extreme weather conditions

Robust construction

  • Reinforced steel sheet
  • Structure optimized for outdoor loads
  • Guaranteed stability in windy conditions

Applications and Activity Sectors

Outdoor Industrial Installations

  • Roof extraction and stale air evacuation
  • Workshop ventilation with outdoor outlet
  • Outdoor smoke extraction systems

Commercial and Tertiary Sector

  • Underground parking ventilation
  • Professional kitchen extraction
  • HVAC systems with outdoor units

Specialized Applications

  • Chemical industries requiring secure extraction
  • Smoke and corrosive vapor treatment
  • Aggressive environments (seaside, industries)

High Protection Enclosed Pedestals Advantages

Anti-corrosion protection - Guaranteed resistance to aggressive environments
Weather resistance - Designed for permanent outdoor use
Complete range - Sizes adapted to SEAT and STORM fans
Secure installation - Reinforced fixings for outdoor conditions
Extreme durability - High performance materials and treatments
Extended compatibility - Compatible ATEX versions available

Choosing Your High Protection Enclosed Pedestal

For SEAT 15-25 (low power): HP enclosed pedestal 450mm
For SEAT 25-30 (medium power): HP enclosed pedestal 550mm
For SEAT 35 (high power): HP enclosed pedestal 700mm

ATEX Versions Available

All high protection enclosed pedestals are available in ATEX Zone II certified version for outdoor explosive environments.

Adapted Switches

  • Outdoor switches minimum IP65
  • ATEX versions for hazardous areas
  • Reinforced cabling for outdoor conditions

Choose SEAT Ventilation for your high protection enclosed pedestals: extreme resistance, anti-corrosion protection and guaranteed reliability for all your outdoor extraction projects.
