JET 20

Inline polypropylene centrifugal fan

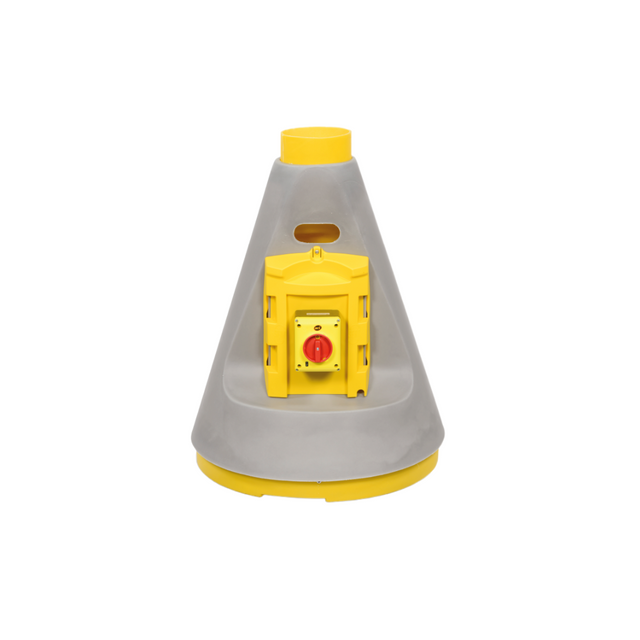

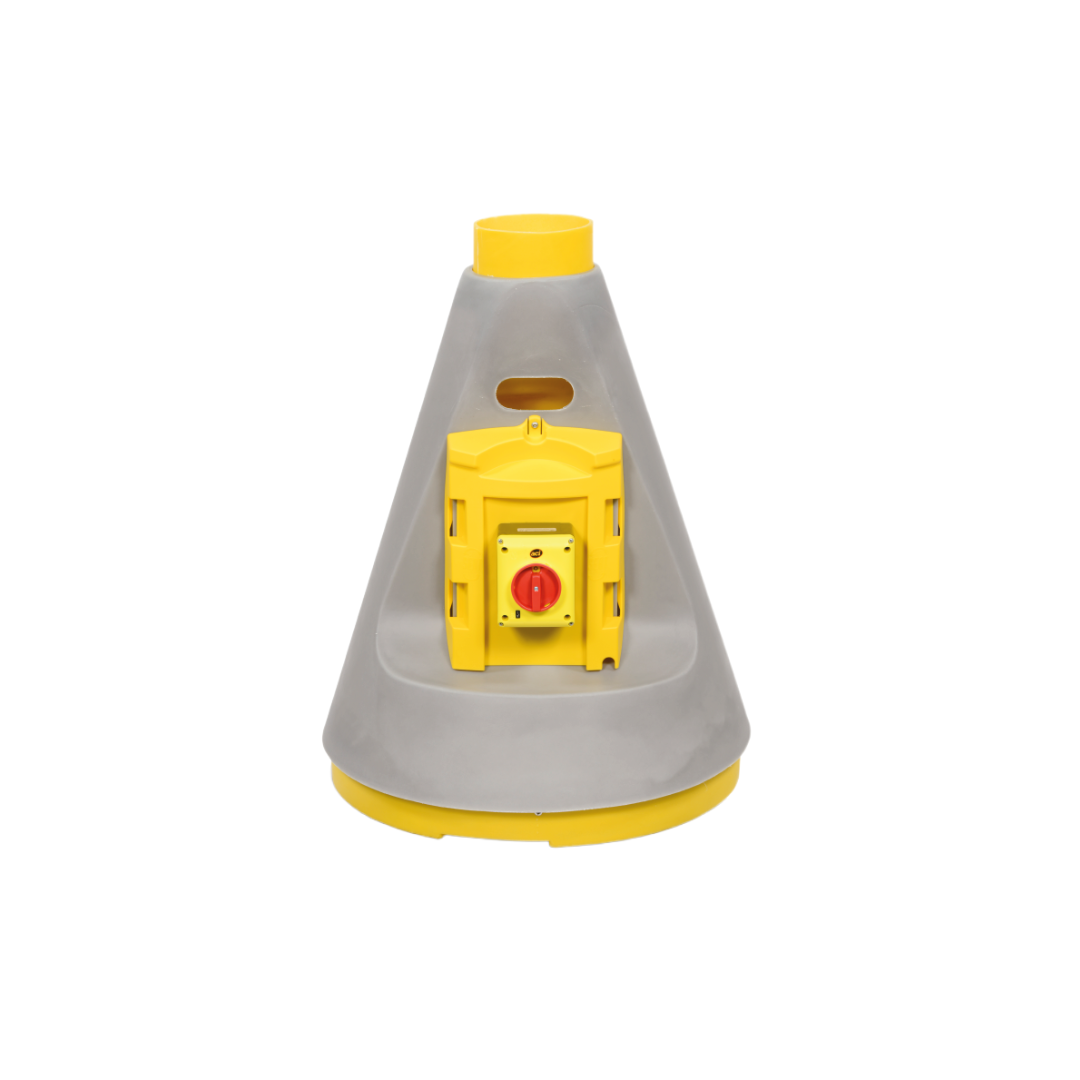

The JET 20 from SEAT Ventilation is a polypropylene centrifugal fan suitable for the extraction of corrosive gases with a maximum air flow rate of 1600 m³/h and a diameter of 160mm on the suction and discharge sides.

In direct drive, the impeller is attached directly to the motor shaft. It can be supplied with single-phase or three-phase motors with a frequency converter to meet the requirements of your installations.

Further information and advice on specific applications are available from our technical department.

Available in ATEX Zone 2 version only with three-phase motors.

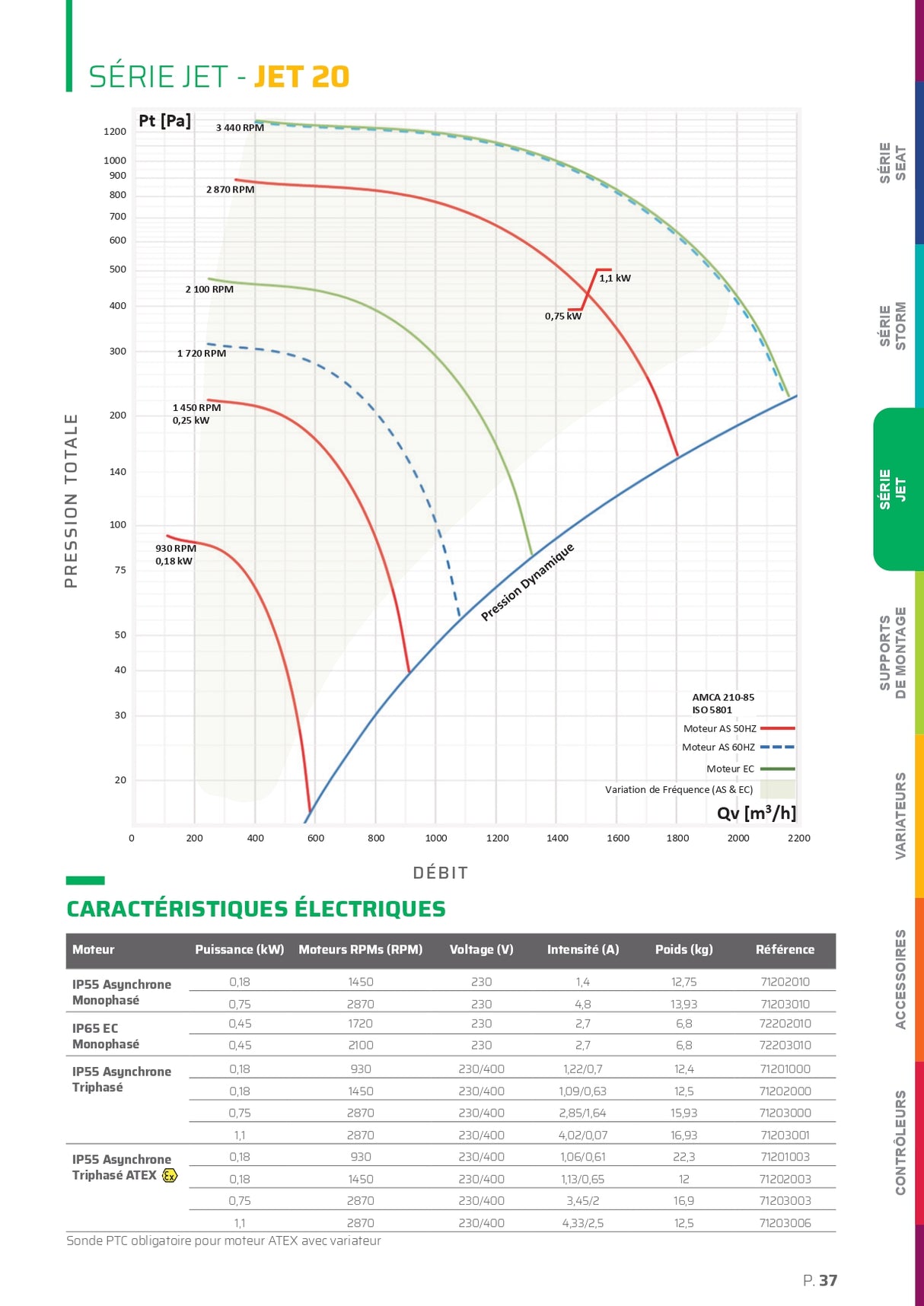

TECHNICAL CHARACTERISTICS

• Air flow: 400-1600 m³/h
• Total pressure: 80-1200Pa
• Sound level (A): RPM 1150=64dB, RPM 1725-75dB, RPM 3450=93dB
• Aspiration: diameter 160mm
• Material: polypropylene
• Drive: direct
• Motor: single-phase 115/230V or three-phase 230/460V
• Frequency: 50Hz or 60Hz with frequency converter

► Find the right product for your project even more easily, thanks to our online selection software:

 ZEPHYR

SEAT Ventilation's JET range features centrifugal fans designed for in-line installation. The JET motor is enclosed in a housing and protected from corrosive flow and the elements.

Across the JET range (20, 25, 30), performance ranges from 80 to 1200 Pa static pressure and from 400 to 3500 m³/h airflow. The integrated waterproof cover and the disconnector make for an excellent installation package.

With a vertical discharge, this fan is typically mounted on a roof or wall (vertical or horizontal). JET fans are often used in swimming pools, water parks, municipal aquatics facilities, marine and saltwater environments, chemical/chlorine storage aisles, booster tank systems, closed tube slide ventilation systems, underground equipment/chemical vaults, fitness facilities, and more.

The JET range is made from recyclable, UV-resistant polypropylene and complies with ISO 9001-2008 standards.
