SEAT 20

Centrifugal fan made of anti-corrosion polypropylene

SEAT 20 specifications (pdf)

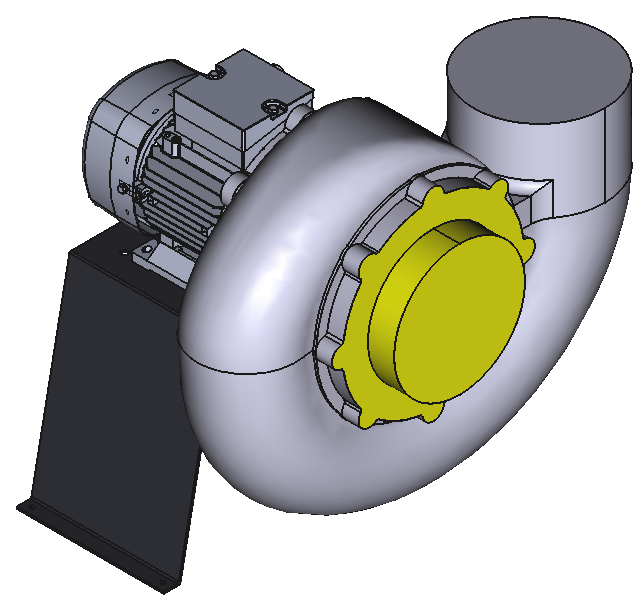

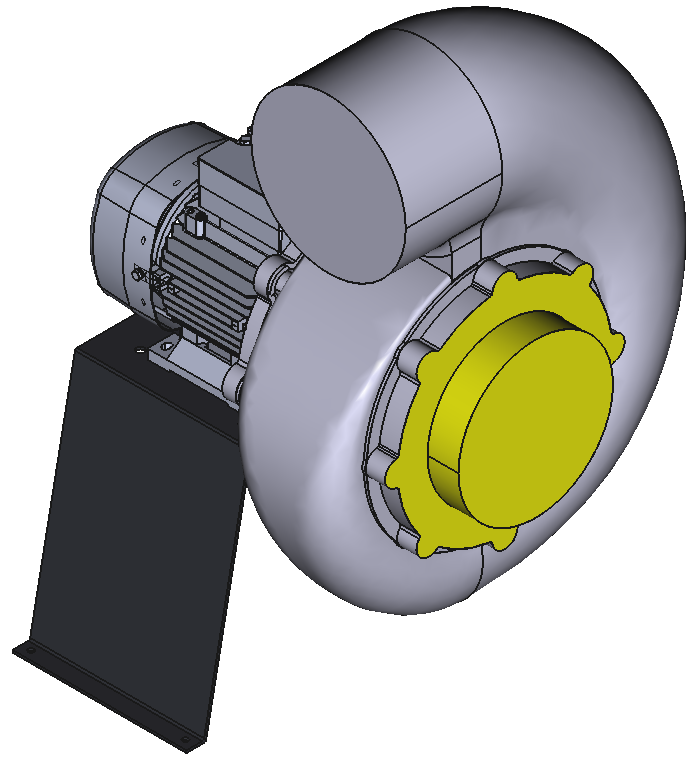

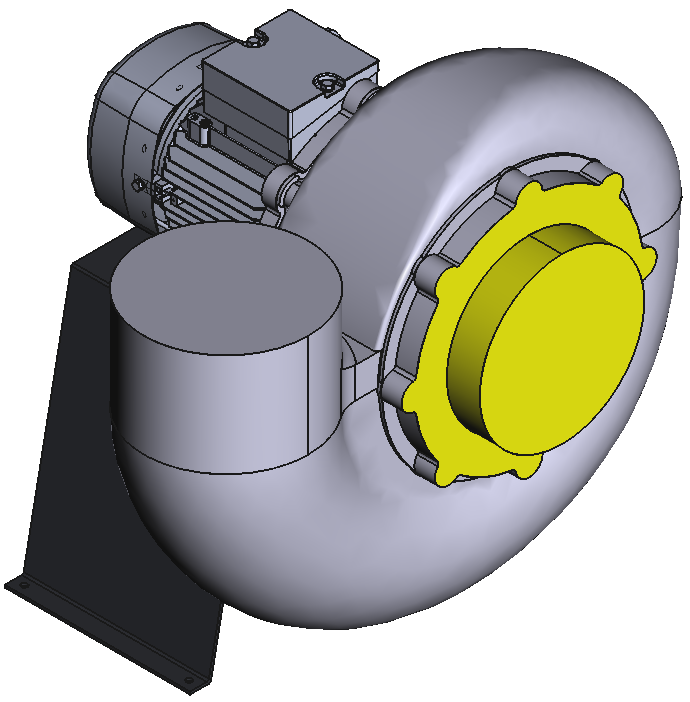

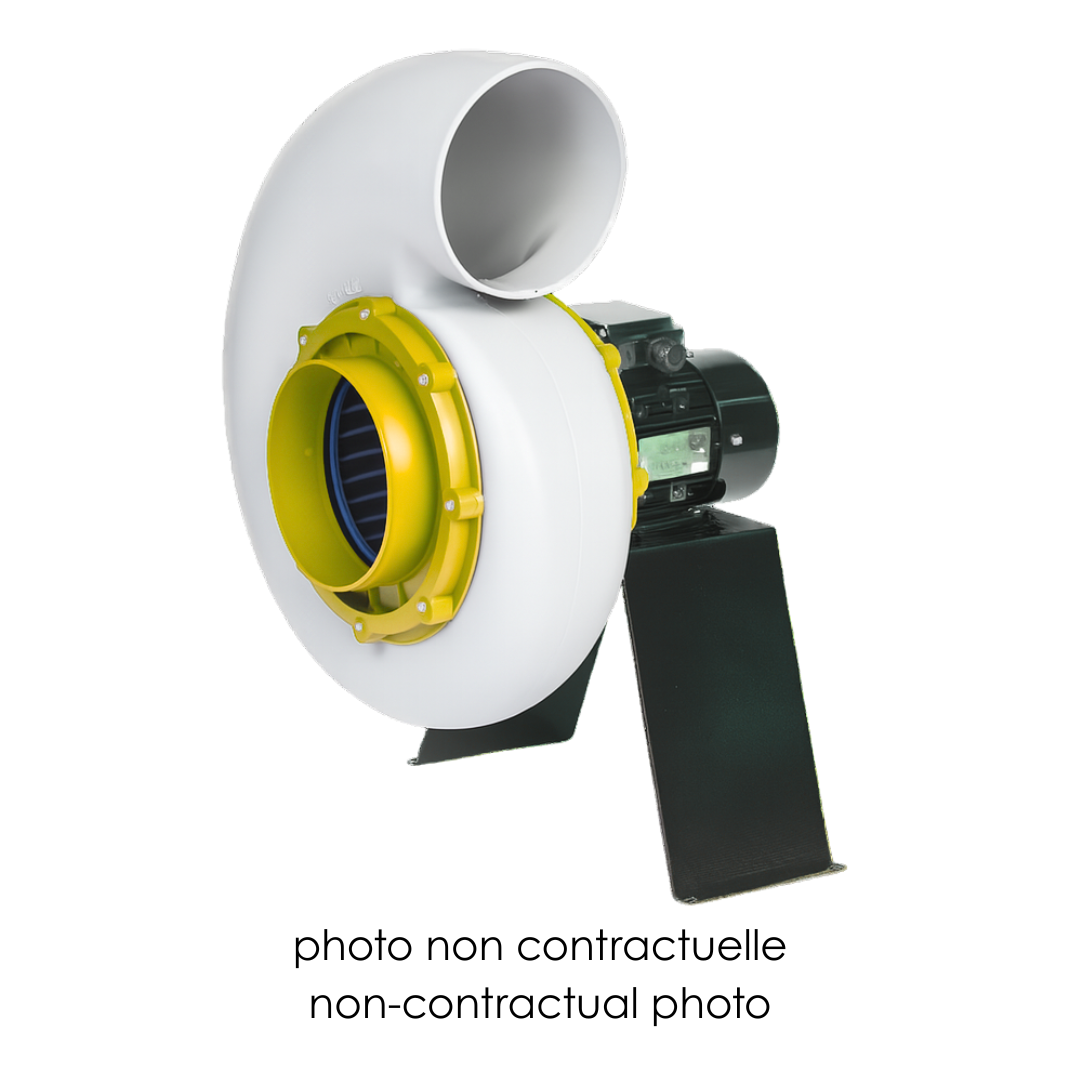

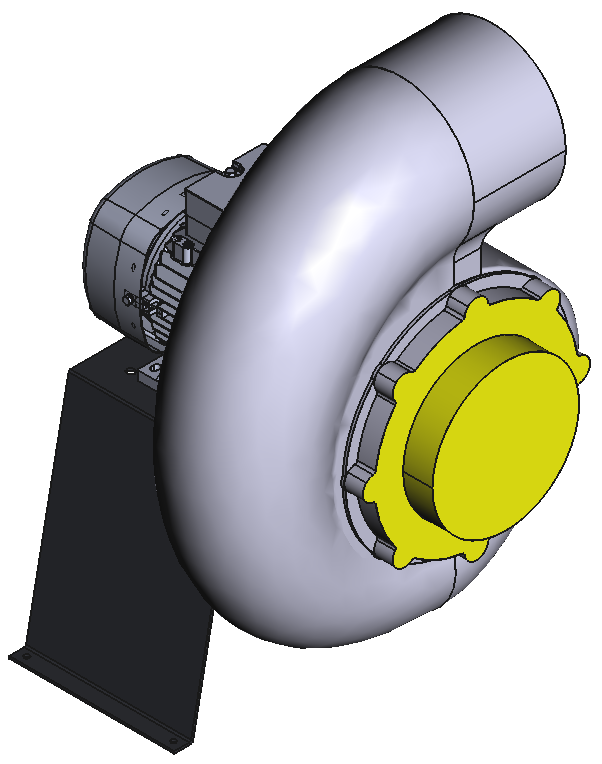

THE SEAT 20 from SEAT Ventilation is a polypropylene centrifugal fan used in laboratories and most industrial extractions.

Its polypropylene volute is suitable for the extraction of corrosive gases with a maximum air flow of 1800 m³ /h and a diameter of 160mm in suction and discharge.

In direct drive, the turbine is attached directly to the motor shaft. It can be supplied with single-phase or three-phase motors and with a frequency converter to meet the requirements of your installations.

The SEAT 20 is ideal for use in laboratories, medical facilities, research, testing and manufacturing laboratories, and in fluidized systems. Suitable for the science and technology, biotechnology, medicine and biomedical sciences sectors, as well as most industrial extractions.

Hindered amine light stabilizer (HALS) polymer for increased UV resistance.

Easy to install, compact, it has good flow/pressure ratios.

Available in ATEX Zone 2 version

TECHNICAL CHARACTERISTICS

• Air flow: ^200-1800m3 /h
• Total pressure: 50-1400Pa
• Aspiration: diameter 160mm
• Material : polypropylene
• Training : direct
• Optional support: mounting on metal chair, high protection or roof kit
• Engine power supply: single-phase 220V or three-phase 220/380V (available in EC)
• Frequency : 50Hz or 60Hz with frequency converter
• Temperature : 60°C
