SEAT 25

Centrifugal fan made of anti-corrosion polypropylene

SEAT 25 specifications (pdf)

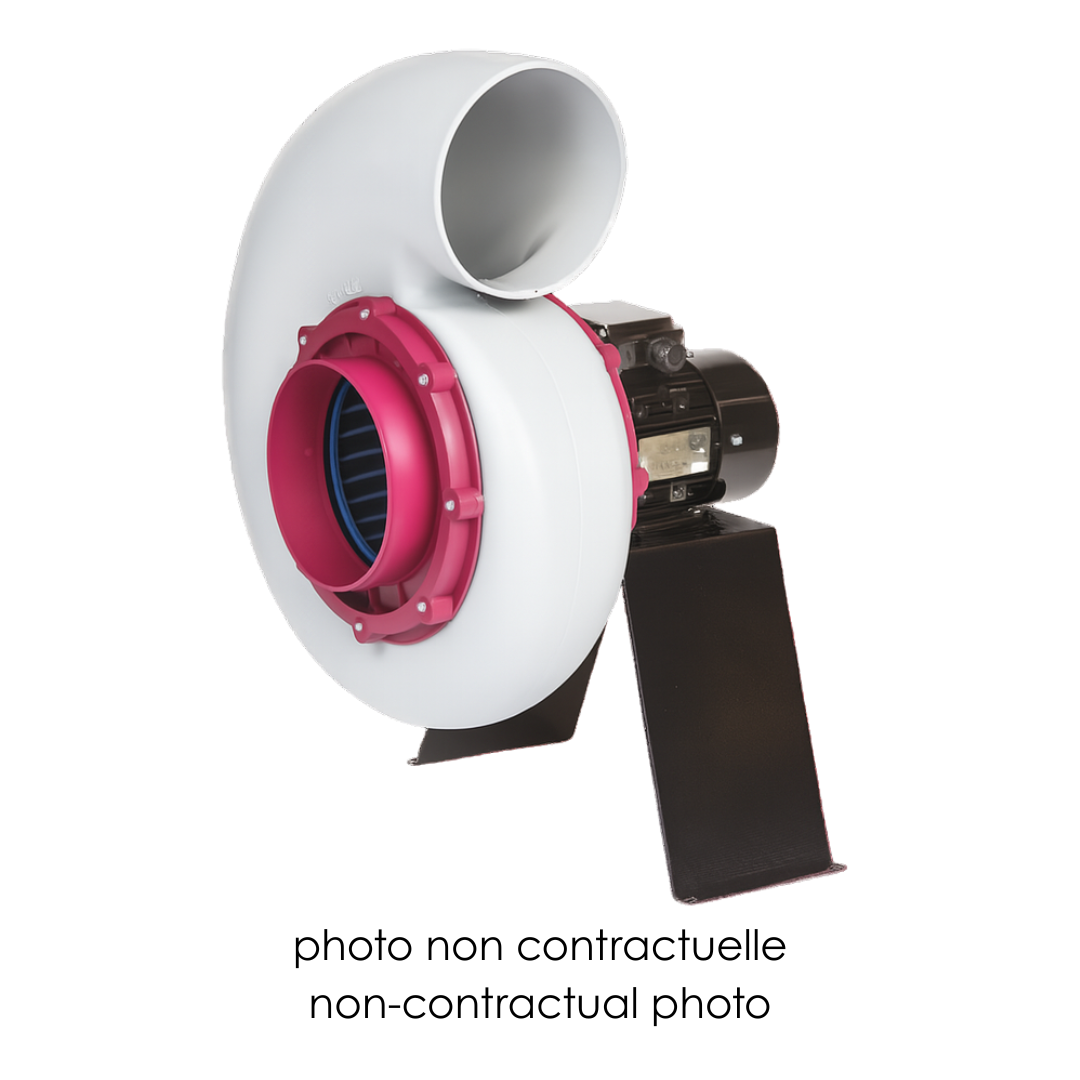

The SEAT 25 from SEAT Ventilation is a polypropylene centrifugal fan used in laboratories and most industrial extractions.

Its polypropylene volute is suitable for the extraction of corrosive gases with a maximum air flow of ^3300m3 /h and a diameter of 200mm in suction and discharge.

In direct drive, the turbine is attached directly to the motor shaft. It can be supplied with single-phase or three-phase motors and with a frequency converter to meet the requirements of your installations.

The SEAT 25 is ideal for application in hospitals, universities, institutes, schools, science and technology laboratories, biology, physics, chemistry laboratories as well as most industrial extractions.

Hindered amine photostabilizer (HALS) polymer for increased UV resistance.

Easy to install, compact, it has good flow/pressure ratios.

Available in ATEX Zone 2 version

TECHNICAL CHARACTERISTICS

• Air flow: ^500-3300m3 /h
• Total pressure: 60-1400Pa
• Aspiration: diameter 200 mm
• Material : polypropylene
• Training : direct
• Optional support: metal chair, high protection or roof kit
• Engine power supply: single-phase 220V or three-phase 220/380V (available in EC)
• Frequency : 50Hz or 60Hz with frequency converter
